DZH Moving Grate Coal Fired Steam Boilers

DZH-Moving-Grate-Coal-Fired-Steam-BoilersDZH Moving Grate Coal Fired Steam Boilers is suitable for wood chips, wood brick, wood pellet and coal as fuel. It is one dual fuel boiler and do not have strict requirement for fuel size.  DZH moving grate coal fired boiler is widely used in smaller steam capacity requirement.

Moving Grate Coal Fired Steam Boilers can be used for baking finish house, dry oven, drying material and so on. It also used for center heating , industry steam supply, sauna bath house.


Feature of DZH Moving Grate Coal Fired Steam Boilers

1) High Working Efficiency:  Adopt arch tube sheet and currogated flue gas tube for drum making, make sure high heat transfer efficiency and full load working. This design also avoid dust deposition in flue gas tube and solve the tube sheet crack problem.

2) Best Welding Quality: Welding position adopt mechnical processing and high temperature area special technique process, which make sure welding quality and long life span

3) Better Water Circulating Design: eliminate the Slough at boiler drum, better ciruclating effect and avoid boiler drum bottom swell.

4) Suitable for Multi-Fuel: Suitable for brown coal, bituminous coal,wood brick, wood pellet, wood chips and industry waste.

5) Compact Structure and Easy to Install: build foundation, connect to electricity and pipe, install valve. Then it can work.

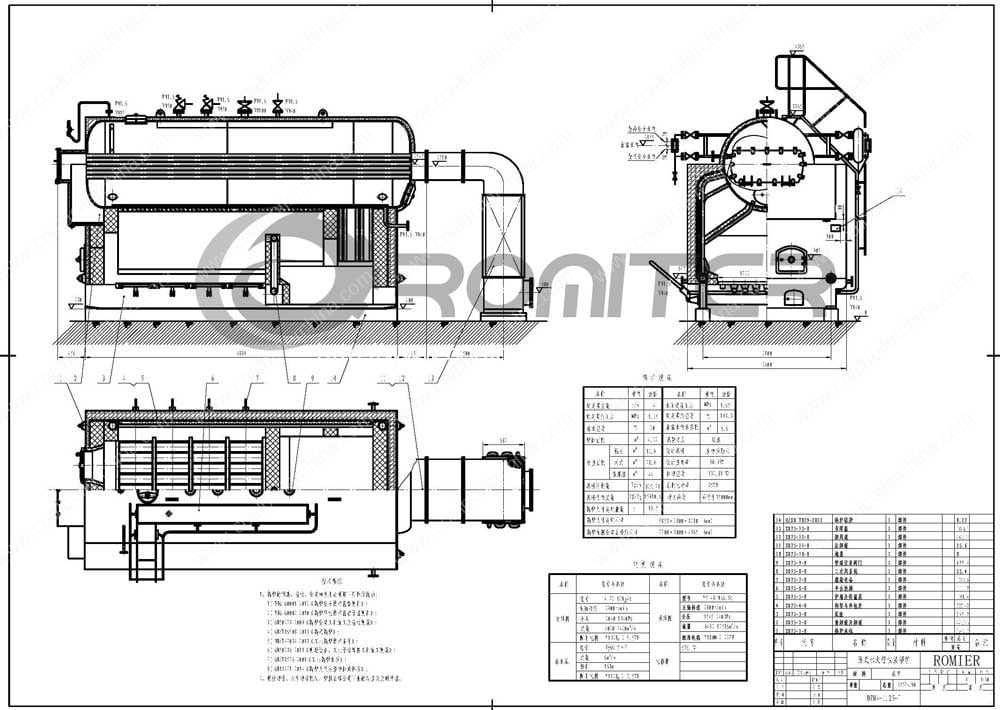

General Drawing of DZH Moving Grate Coal Fired Steam Boilers



Parameter Table of DZH Coal Fired Steam Boilers

Item Steam Capacity Steam Pressure Steam Temperature Thermal Efficiency Coal Consumption Grate Type
t/h MPa Kg/h
DZH0.5-0.7-AII 0.5 0.7 170 >76% 55 Moving Grate
DZH1-0.7-AII 1 0.7 170 >76% 110 Moving Grate
DZH1-1.0-AII 1 1 184 >76% 112 Moving Grate
DZH1-1.25-AII 1 1.25 194 >76% 114 Moving Grate
DZH2-0.7-AII 2 0.7 170 >76% 220 Moving Grate
DZH2-1.0-AII 2 1 184 >76% 223 Moving Grate
DZH2-1.25-AII 2 1.25 194 >76% 225 Moving Grate
DZH2-2.5-AII 2 2.5 228 >76% 228 Moving Grate

Company Profile


Romiter Group has a large number of professional technique person and managerial personnel, who engated in design and manufacture boilers and pressure vessels, which makes Romiter can provide best quality products and best technical support.

Now, we concentrating on supply DZH Moving Grate Coal Fired Steam Boilers, DZL Chain Grate Coal Fired Steam Boilers, SZL Chain Grate Coal Fired Steam BoilersYGL Coal Fired Thermal Oil Boilers, YLW Coal Fired Thermal Oil Heaters, Coal Fired Hot Air Furnace, Coal Fired Molten Salt Heaters, AAC Brick Steam Autoclave.

We are dedicated to global market and have exported boilers to more than twenty countries.We sincerely welcome all customers to contact and visit us to build long-term business relationship.
